Insurgent LB

Nesmrtelná dvoukolá mašina na menších kolech

Inovovaný nástupce Insurgentu. Nemělo cenu měnit co funguje, pouze jsme vylepšili tuhost rámu změnou zadní rozteče na boost standart. Díky nízkému težišti a delší horní rámové trubce je bikování zase o něco lepší…

Máte nějaké otázky nebo potřebujete poradit?

Neváhejte a kontaktujte nás telefonem, e-mailem nebo přes sociální sítě.

THE BALANCE OF FUN, POP AND CRUSHING ROCK GARDENS

The original Insurgent was born in a time of turmoil, 26 was dying, 27.5 and 29 were the flavour of the day and nobody could decide which one they liked better. We tuned out the noise, busted out of the trends and made a bike that’s fun and had us slashing corners, ripping single track and hitting jump lines. It didn’t disappoint us then, and now it’s just a little bit better’er.

The Insurgent LB is ready to suit your shredding needs. If your favorite past-time is racking up king-of-the-mountain accents and padding your strava stats then you can choose between a RockShox Monarch Plus or the Fox DPX2 rear shock to convert all your power into momentum with mind bending traction and a dependable feeling of plushness. If you prefer sending-it-to-flat, upgrade to the Push ElevenSix, which turns the bike into a square-edge-hit, traction generating, and bottomless feeling two wheeled death machine

If you’re into pedalling all day, try a 150mm fork and set the flip chips to the LOW position and enjoy a 74.8° seat angle while the 66.1° head angle keeps the descents in control and the party level high. But if you’re into enduro bro, or even better, slashing berms at bike parks, try a 160mm or 170mm fork with the flip chips in the XLOW position and experience a slack and low slung corner destroying play bike that likes to jump and square off corners.

01

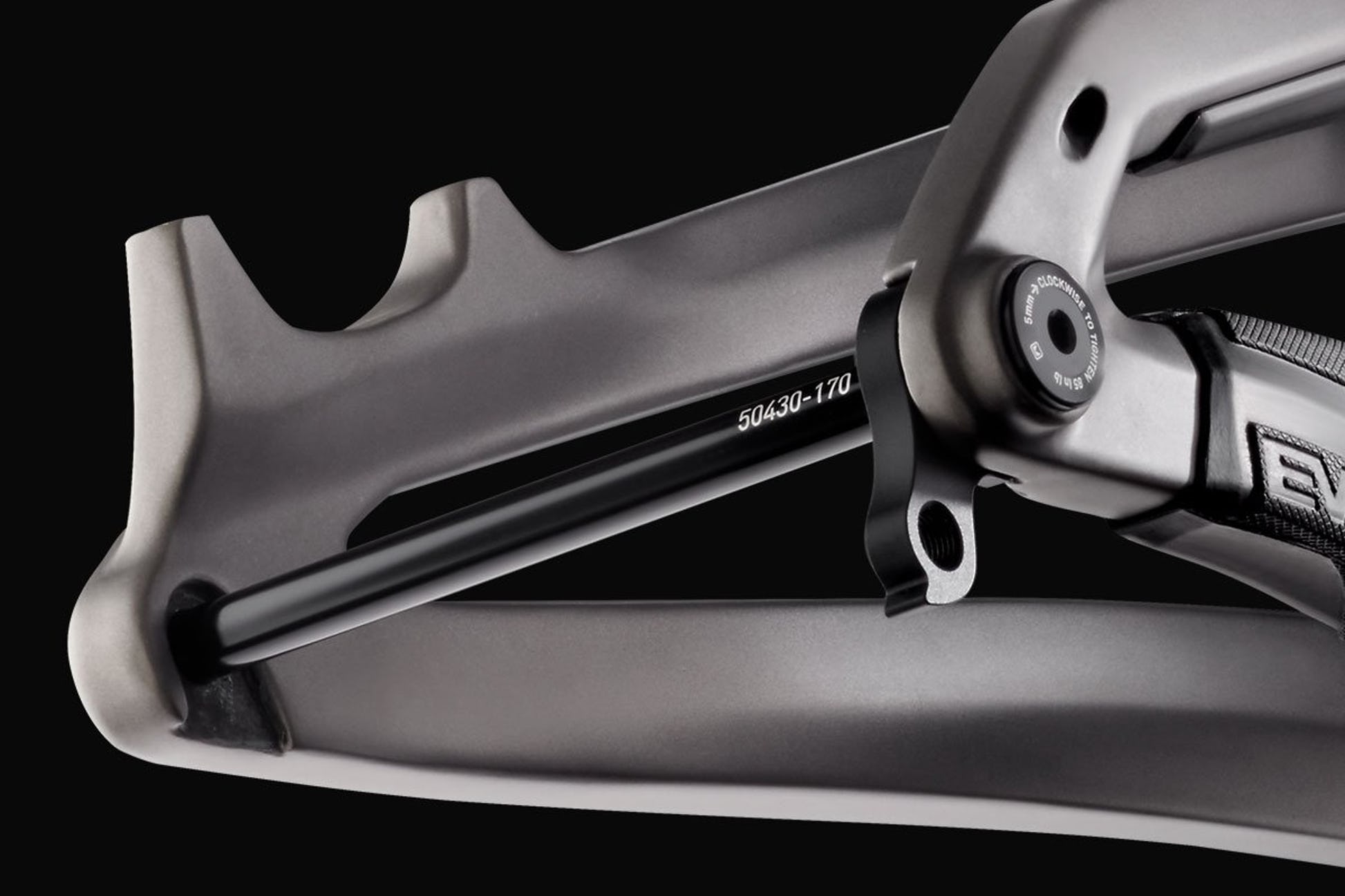

BOLT ON AXLE

Our new axle bolts directly into the derailleur hanger for stiff hassle free operation.

02

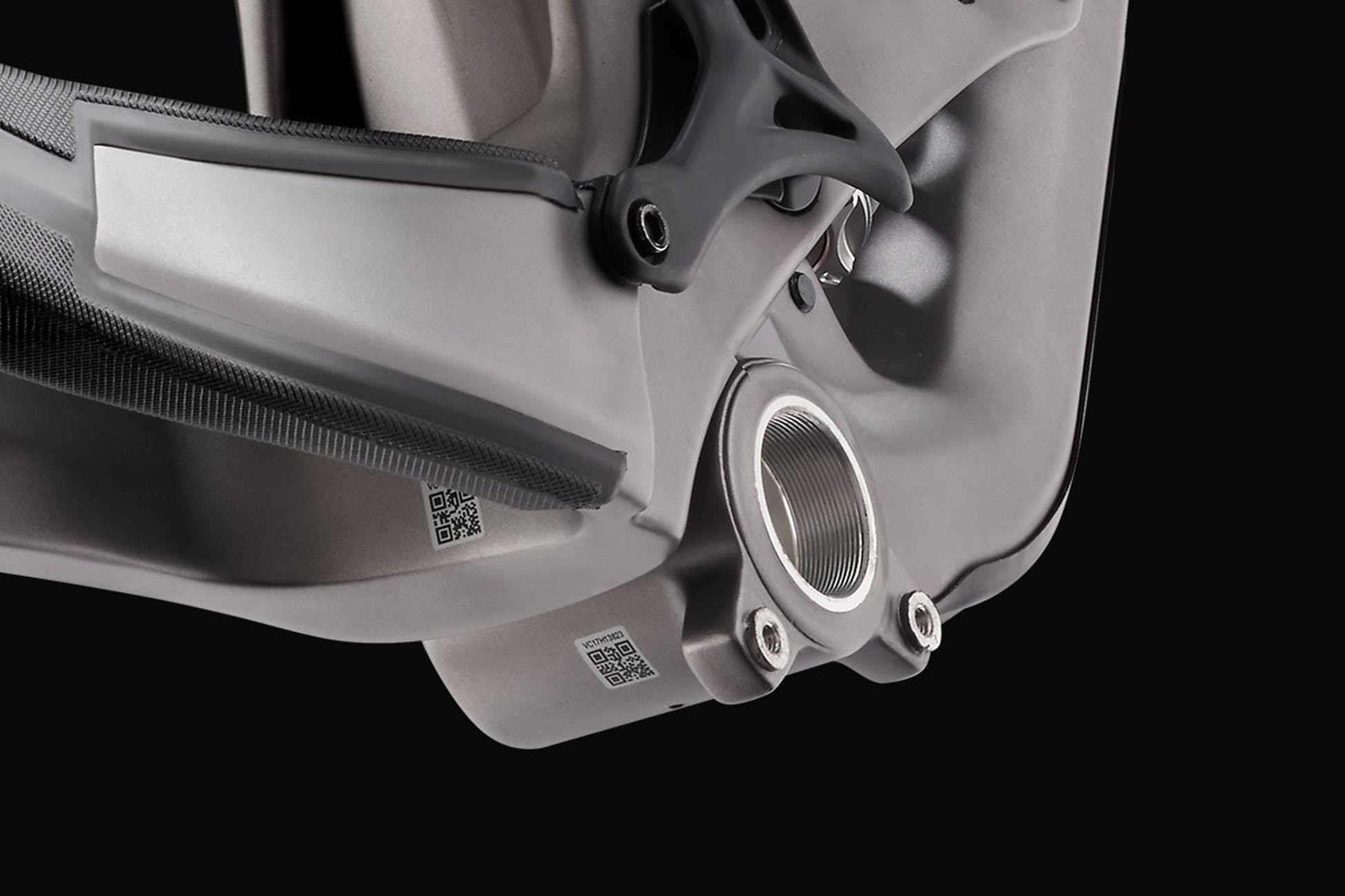

CUSTOM ISCG05 MOUNTS

Custom ISCG05 tabs to accommodate our lower guide collaboration with e13 components.

03

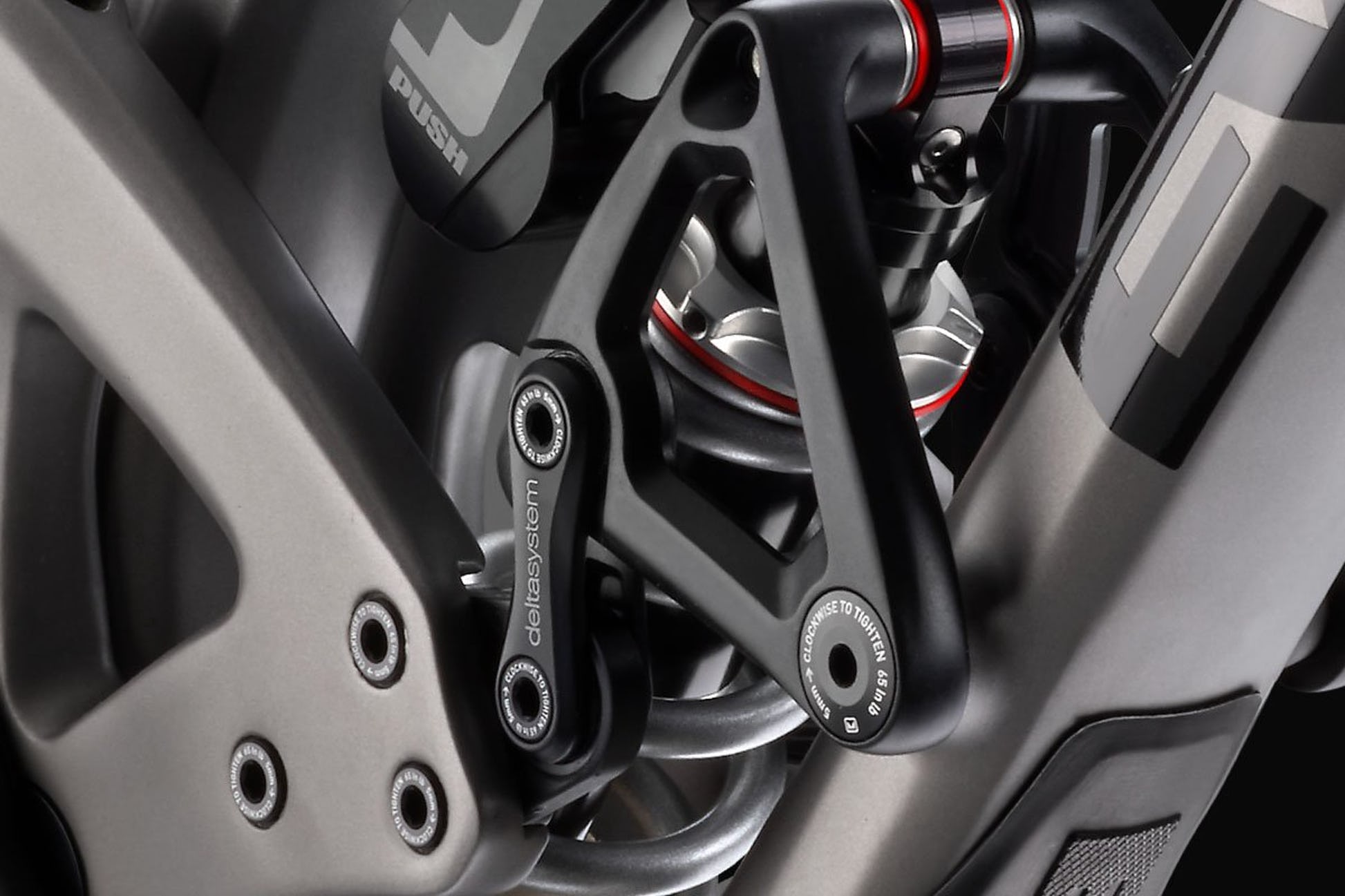

DELTA SYSTEM

Completely redesigned with a focus on simplicity, weight reduction and strength. We increased lateral frame stiffness with redesigned dog bone links that use integrated forged bosses to connect the linkage and simplify maintenance.

04

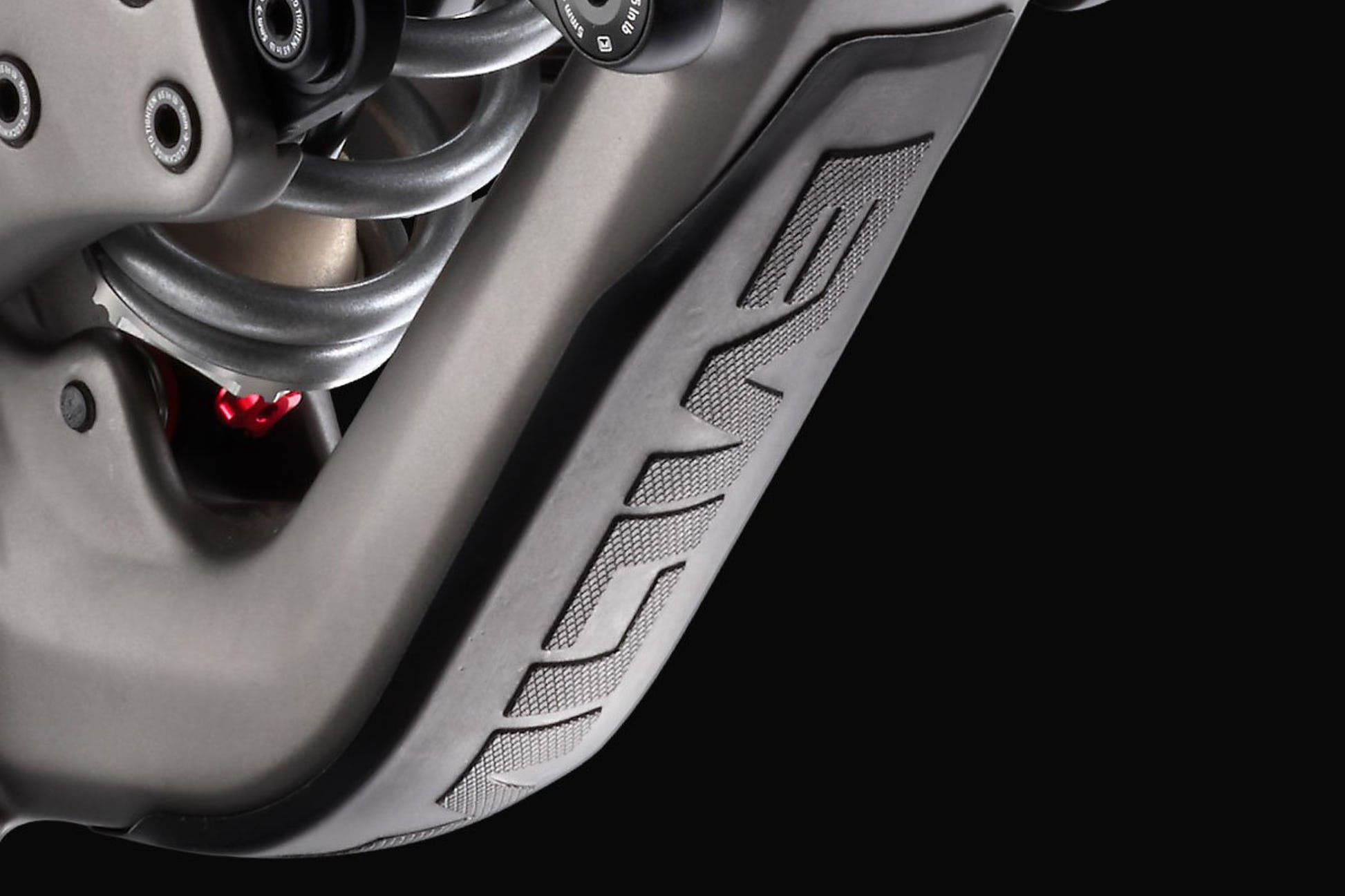

DOWNTUBE PROTECTOR

Molded Rubber Downtube Protector keeps rocks and debris off the plastic and quiets the ride.

05

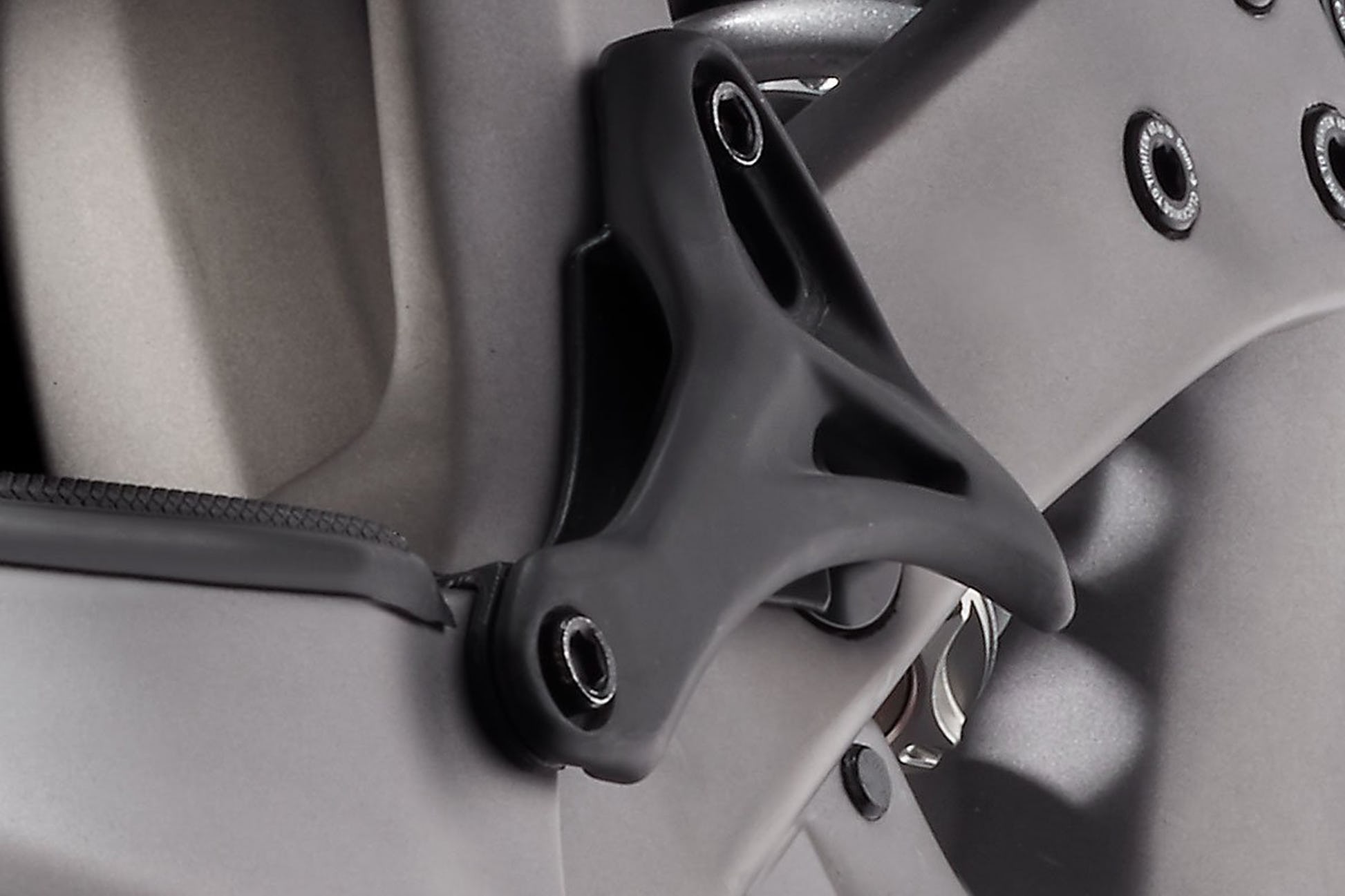

INTEGRATED CHAINGUIDE

Fully integrated carbon chainguide to keep that chain on.

06

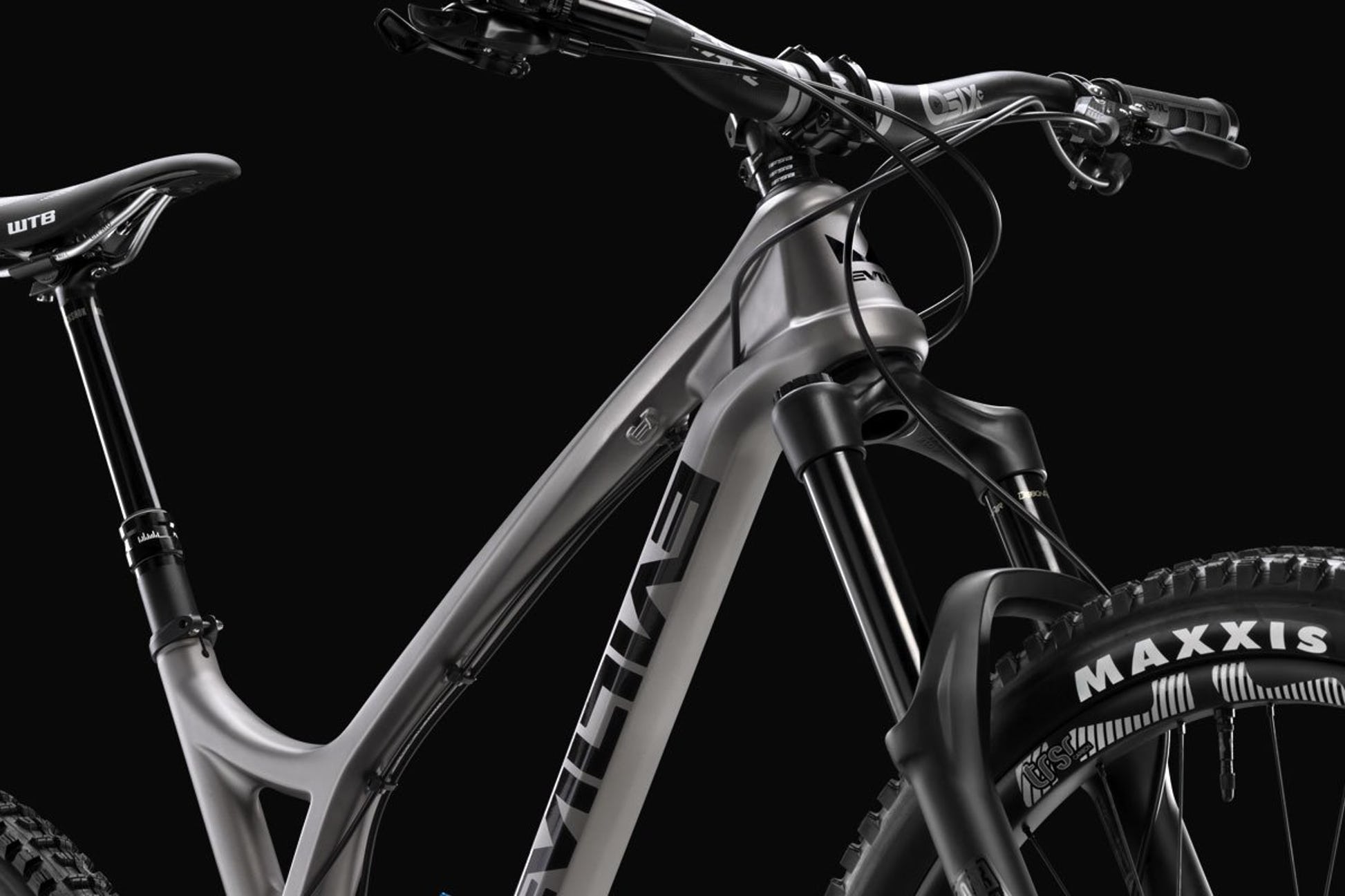

INTERNAL ROUTING

Internal routing for stealth dropper posts. Rear derailleur and brake routing is cleanly routed under the toptube and the rear derailleur cable is internally routed through the swingarm to keep things tidy.

07

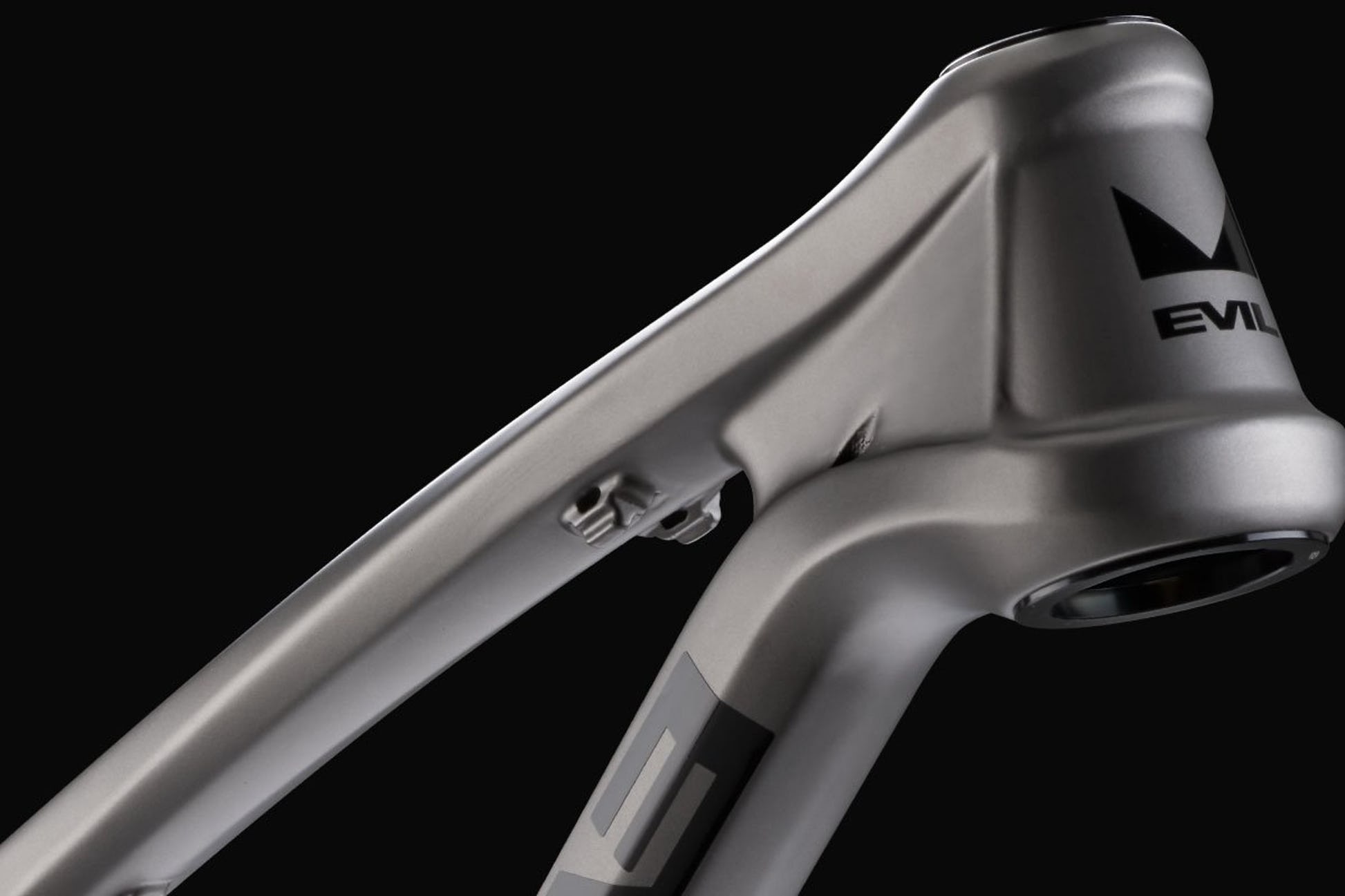

PLASTIC FANTASTIC

Uni Directional Carbon with One Piece Molded construction from one of the best factories in the business.

08

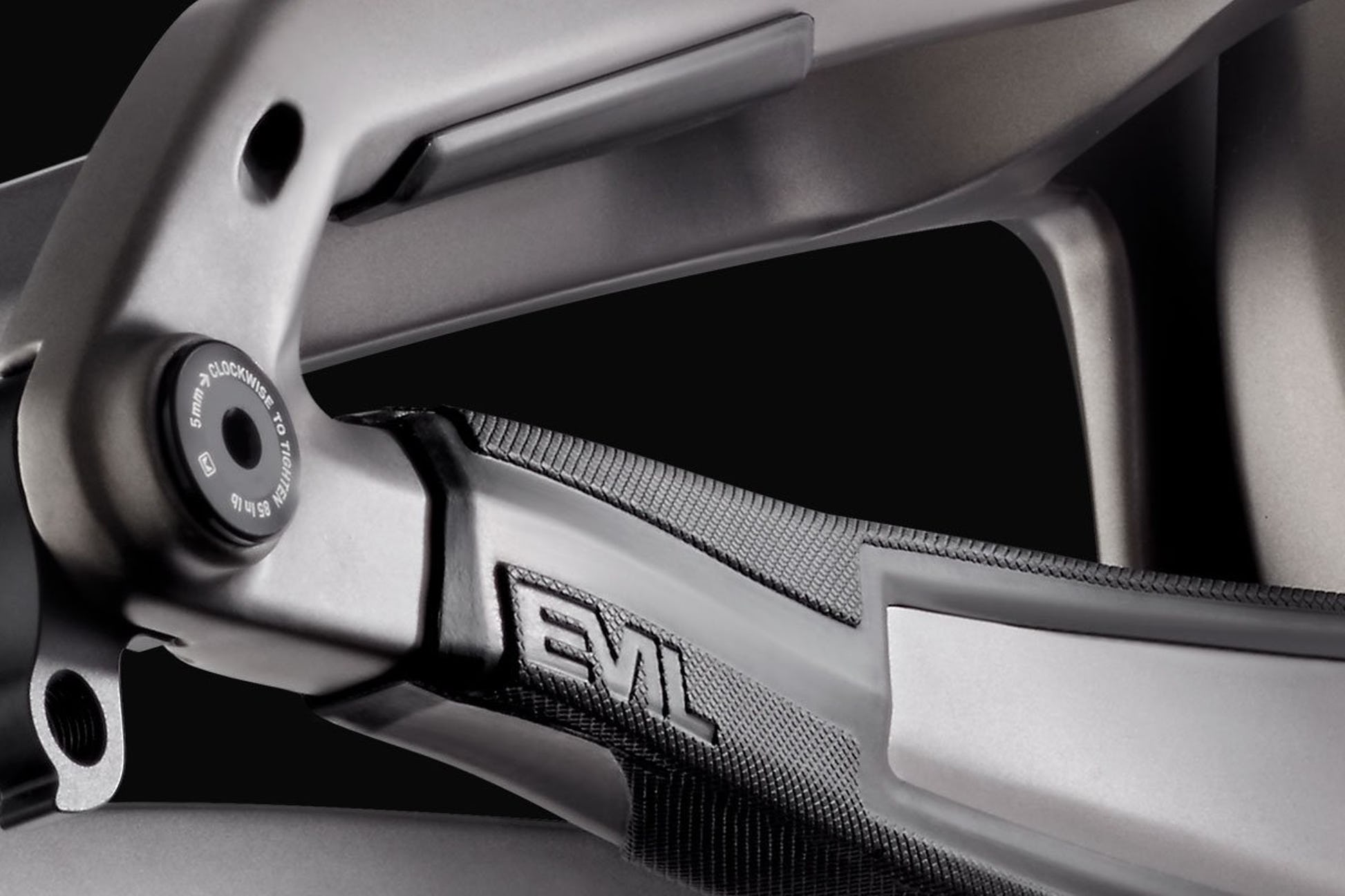

RUBBER PROTECTION

Integrated rubber protection for the chainstay and seat stay to keep things peaceful and quiet in the woods.

09

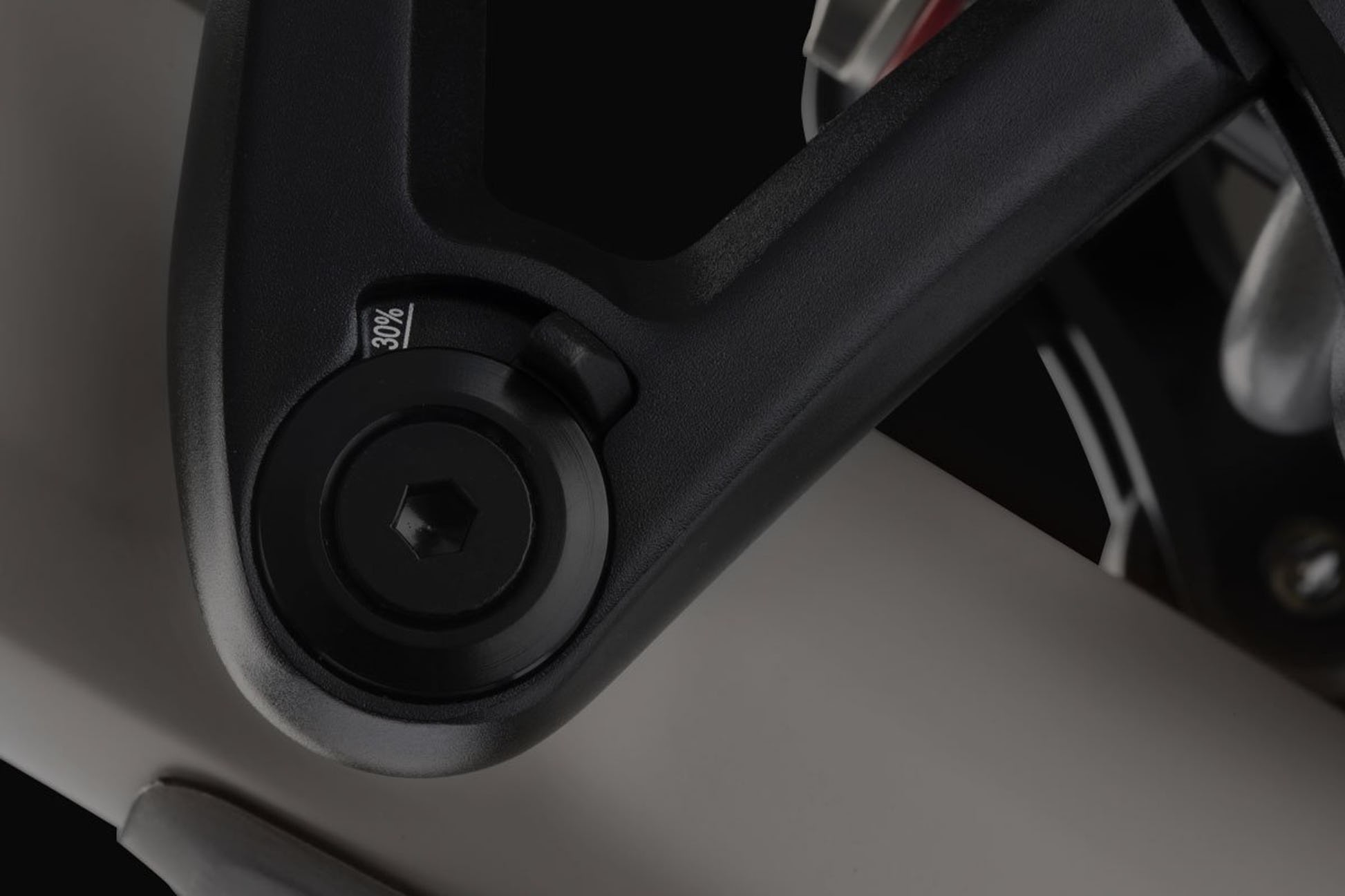

SAG METER

We added a fancy integrated SAG meter into the non-drive side Delta Link to make suspension set up easy. Push it forward, sit on your bike, adjust air pressure to 30%, then shred.

10

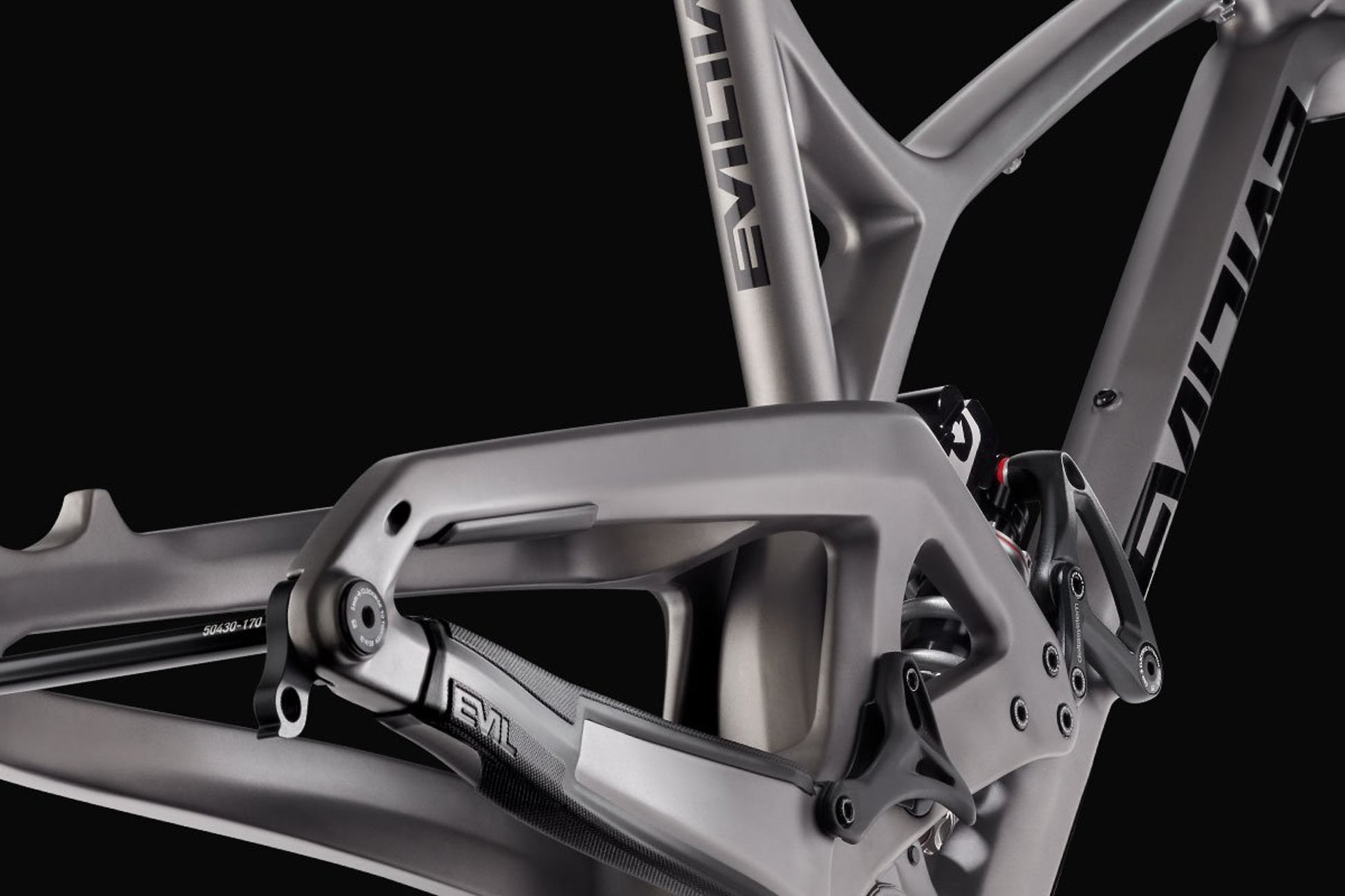

LIGHTER LAY UP

A new lighter layup improves the overall ride quality, maximizing compliance where we wanted and stiffness where we needed.

Available Sizes Small, Medium, Large, X-Large
Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200×57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15×100
Handlebar Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem Evil 12 Gauge, Length: 35mm
Grips Evil Lock-on
Brake – Front SRAM G2 RS
Brake – Rear SRAM G2 RS
Rotor – Front SRAM Center Line, 200mm
Rotor – Rear SRAM Center Line, 180mm
Brake Adapter SRAM PM Adapter
Shifter SRAM GX Eagle, 12sp
Rear Derailleur SRAM GX Eagle, 12sp
Cassette SRAM XG-1275 Eagle, 10-52T: 10, 12, 14, 16, 18, 21, 24, 28, 32, 36, 42, 52
Chain SRAM GX Eagle w/Powerlock
Crankset SRAM GX Eagle DUB, Boost, 170mm, Direct Mount 32t, 52mm Chainline, Lunar
Bottom Bracket SRAM DUB 73mm BSA
Wheelset – Front e*thirteen LG1, Internal Width: 30mm, 15×110
Wheelset – Rear e*thirteen LG1, Internal Width: 30mm, 12×148
Tire – Front Maxxis Minion DHF EXO TR, 27.5×2.3
Tire – Rear Maxxis Minion DHF EXO TR, 27.5×2.3
Tubes Stan’s No Tubes Tubeless Sealant
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm (390mm), M: 150mm (440mm), L/XL: 175mm (480mm)
Saddle WTB Volt Pro
Available Sizes Small, Medium, Large, X-Large
Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200×57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15×100
Handlebar Evil Boomstick 7075 Alloy, Backsweep: 8°, Upsweep: 5° Clamp:35mm, Rise: 35mm, Width: 810mm
Stem Raceface Turbine 35, Length: 40mm
Grips Evil Lock-on
Brake – Front SRAM Code RSC
Brake – Rear SRAM Code RSC
Rotor – Front SRAM Center Line, 200mm
Rotor – Rear SRAM Center Line, 180mm
Brake Adapter SRAM PM Adapter
Shifter SRAM X01 Eagle, 12sp
Rear Derailleur SRAM X01 Eagle, 12sp
Cassette SRAM XG-1295 Eagle, 10-52T: 10, 12, 14, 16, 18, 21, 24, 28, 32, 36, 42, 52
Chain SRAM X01 Eagle w/Powerlock
Crankset SRAM X01 Eagle DUB, Boost, 170mm, Direct Mount 32t, 52mm Chainline, Lunar
Bottom Bracket SRAM DUB 73mm BSA
Wheelset – Front e*thirteen LG1, Internal Width: 30mm, 15×110
Wheelset – Rear e*thirteen LG1, Internal Width: 30mm, 12×148
Tire – Front Maxxis Minion DHF EXO TR, 27.5×2.3
Tire – Rear Maxxis Minion DHF EXO TR, 27.5×2.3
Tubes Stan’s No Tubes Tubeless Sealant
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm (390mm), M: 150mm (440mm), L/XL: 175mm (480mm)
Saddle WTB Volt Pro
Available Sizes Small, Medium, Large, X-Large
Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200×57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15×100
Handlebar Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Stem Raceface Turbine 35, Length: 40mm
Grips Evil Lock-on
Brake – Front SRAM G2 RSC
Brake – Rear SRAM G2 RSC
Rotor – Front SRAM Center Line, 200mm
Rotor – Rear SRAM Center Line, 180mm
Brake Adapter No Adapter
Shifter SRAM Eagle AXS Controller
Rear Derailleur SRAM X01 Eagle AXS, 12 sp
Cassette SRAM XG-1295 Eagle, 10-52T: 10, 12, 14 ,16, 18, 21, 24, 28, 32, 36, 42, 52
Chain SRAM X01 Eagle w/Powerlock
Crankset SRAM X01 Eagle DUB, Boost, 170mm, Direct Mount 32t, 52mm Chainline, Lunar
Bottom Bracket SRAM DUB 73mm BSA
Wheelset – Front e*thirteen LG1, Internal Width: 30mm, 15×110
Wheelset – Rear e*thirteen LG1, Internal Width: 30mm, 12×148
Tire – Front Maxxis Minion DHF EXO TR, 27.5×2.3
Tire – Rear Maxxis Minion DHF EXO TR, 27.5×2.3
Tubes Stan’s No Tubes Tubeless Sealant
Seatpost SRAM AXS Reverb, 30.9, S: 125mm, M: 150mm, L/XL: 170mm
Saddle WTB Volt Pro
Available Sizes Small, Medium, Large, X-Large
Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200×57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15×100
Handlebar Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Stem Evil 12 Gauge, Length: 35mm
Grips Evil Palmela Handerson lock-on
Brake – Front Shimano XT M8120 4-Piston
Brake – Rear Shimano XT M8120 4-Piston
Rotor – Front Shimano RT86 Ice Tech, 203mm, 6-Bolt
Rotor – Rear Shimano RT86 Ice Tech, 203mm, 6-Bolt
Brake Adapter Shimano PM Adapter
Shifter Shimano XT 12sp
Rear Derailleur Shimano XT 12sp
Cassette Shimano XT M8100-12, HYPERGLIDE+, 10-12-14-16-18-21-24-28-33-39-45-51T
Chain Shimano XT M8100, w/Quick-Link
Crankset Shimano XT M8130, 32t, 170mm
Bottom Bracket Shimano XT BB-MT800
Wheelset – Front e*thirteen LG1, Internal Width: 30mm, 15×110
Wheelset – Rear e*thirteen LG1, Internal Width: 30mm, 12×148
Tire – Front Maxxis Minion DHF EXO TR, 27.5×2.3
Tire – Rear Maxxis Minion DHF EXO TR, 27.5×2.3
Tubes Stan’s No Tubes Tubeless Sealant
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 175mm(480mm)
Saddle WTB Volt Pro
Available Sizes Small, Medium, Large, X-Large
Frame EVIL Insurgent 151mm Travel UD Carbon, Internal Dropper Routing, Integrated Upper Guide, BOOST
Shock Rockshox Monarch Plus RC3 Debonair, 200×57 (+2 Volume Spacers)
Headset FSA Integrated Tapered No.57/68 Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚
Headset Spacers Poly Spacers 5mm black
Fork Rockshox Lyrik Ultimate Charger 2 RC2, 27.5, 160mm Travel, DebonAir, 15×100
Handlebar Evil Boomstick Carbon, Backsweep: 8°, Upsweep: 5° Clamp: 35mm, Rise: 35mm, Width: 810mm
Stem Raceface Turbine 35, Length: 40mm
Grips Evil Palmela Handerson lock-on
Brake – Front Shimano XTR M9120 4-Piston
Brake – Rear Shimano XTR M9120 4-Piston
Rotor – Front Shimano RT86 Ice Tech, 203mm, 6-Bolt
Rotor – Rear Shimano RT86 Ice Tech, 203mm, 6-Bolt
Brake Adapter Shimano PM Adapter
Shifter Shimano XTR 12sp
Rear Derailleur Shimano XTR 12sp
Cassette Shimano XTR M9100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Chain Shimano XTR M9100, w/Quick-Link
Crankset Shimano XTR M9120, 32t, 170mm
Bottom Bracket Shimano XTR BB93
Wheelset – Front e*thirteen LG1, Internal Width: 30mm, 15×110
Wheelset – Rear e*thirteen LG1, Internal Width: 30mm, 12×148
Tire – Front Maxxis Minion DHF EXO TR, 27.5×2.3
Tire – Rear Maxxis Minion DHF EXO TR, 27.5×2.3
Tubes Stan’s No Tubes Tubeless Sealant
Seatpost Rockshox Reverb Stealth 30.9mm, S: 125mm(390mm), M: 150mm(440mm), L/XL: 175mm(480mm)
Saddle WTB Volt Pro

160 MM FORK OPTION
GEOMETRY
SMALL
MEDIUM
LARGE
X-LARGE
A – Head Tube Angle LOW
65.6°
65.6°
65.6°
65.6°
Head Tube Angle X-LOW
64.8°
64.8°
64.8°
64.8°
B – Seat Tube Angle LOW
74.3°
74.3°
74.3°
74.3°
Seat Tube Angle X-LOW
73.4°
73.4°
73.4°
73.4°
C – Virtual Top Tube Length
598mm | 23.50″
619mm | 24.37″
640mm | 25.20″
661mm | 26.00″
D – Seat Tube Length
390mm | 15.40″
425mm | 16.70″
460mm | 18.10″
495mm | 19.50″
E – Bottom Bracket Height LOW
346mm | 13.60″
346mm | 13.60″
346mm | 13.60″
346mm | 13.60″
Bottom Bracket Height X-LOW
334.4mm | 13.20″
334.4mm | 13.20″
334.4mm | 13.20″
334.4mm | 13.20″
F – Head Tube Length
100mm | 3.90″
114mm | 4.50″
127mm | 5.00″
141mm | 5.60″
G – Chain Stay Length Low
430mm | 16.93″
430mm | 16.93″
430mm | 16.93″
430mm | 16.93″
Chain Stay Length X-LOW
432mm | 17.00″
432mm | 17.00″
432mm | 17.00″
432mm | 17.00″
H – Wheel Base LOW
1155mm | 45.50″
1178mm | 46.40″
1200mm | 47.30″
1223mm | 48.20″
Wheel Base X-LOW
1157mm | 45.60″
1180mm | 46.50″
1202mm | 47.30″
1224mm | 48.20″
I – Standover
652mm | 25.70″
681mm | 26.80″
701mm | 27.60″
715mm | 28.10″
J – Axle to Crown LOW
552mm
552mm
552mm
552mm
K – Offset
42mm
42mm
42mm
42mm
Stack
589mm | 23.20″
602mm | 23.70″
614mm | 24.20″
627mm | 24.70″
Reach
416mm | 16.40″
433mm | 17.10″
451mm | 17.70″
468mm | 18.40″
Sizing
5’3 – 5’8″
5’6 – 6′
5’10 – 6’2
6’2+
COMPONENT SIZING
SMALL
MEDIUM
LARGE
X-LARGE
Stem Length
35-50mm
35-50mm
35-50mm
35-50mm
Stem Rise
Handlebar Rise
35mm
35mm
35mm
35mm
Handlebar Width
780mm-820mm
780mm-820mm
780mm-820mm
780mm-820mm
Crank Length
170mm
170mm
170mm
170mm
Sizing
5’3″ – 5’8″
5’8″ – 6’0″
6’0″ – 6’4″
6’4″ +
Available Sizes Small, Medium, Large, X-Large
Wheel Travel 151mm
Rear Shock Rock Shox Monarch Plus RC3 Debonair, 200×57 (2 volume spacers)
Shock Hardware 22mm x 8mm
Fork Axle to Crown 542mm
Fork Offset 46mm
Head Tube Tapered 1 1/8″ – 1 1/2″
Headset FSA Integrated Tapered No. 57/68 Upper 44mm Lower 62mm Tapered OD
Seatpost 30.9mm
Seatclamp Diameter 34.9mm
Rear Wheel Diameter 27.5
Maximum Rear Tire Size 27.5
Bottom Bracket Shell 73mm Threaded
Chainline 51mm
Chainguide Mount ISCG05 Lower
Maximum Chainring Size 34T Single Ring
Minimum Chainring Size 30T Single Ring / 32T Oval
Rear Wheel Spacing 142mm x 12mm
Front Derailleur Single Ring Only
Brake Mount Type Post Mount 180mm
Maximum Rear Rotor Size 203mm
ROCKSHOX MONARCH PLUS RC3 DEBONAIR:

Prior to performing shock adjustments, determine riding weight ( fully geared up ). Push the shock O-ring against the wiper seal and push the sag adjuster on the non drive side of the Delta Link forward. Lean up against a sturdy wall, friend, or telephone pole and sit on the bike. Being careful not to tip over, dismount the bike and check the SAG indicator. The SAG indicator should barely cover the 30% mark and the O-ring should measure between 15-17mm from the shock body for ideal setup. The Insurgent uses a high volume air canister which compliments the progressive spring curve of the Delta System Suspension, if a less progressive feel is desired then experiment with different air volume spacers. We also found that the Insurgent performs great in the „Descend“ position for most riding conditions, however, for sufferfest climbs and high speed trail riding the „Pedal“ position also works well.

NOTE: These are just guidelines to start you on your suspension tuning journey. Its very important to tune your front and rear suspension together to get the best set up possible. Play around and find that special tune, then write it down so you don’t forget!

NOTE: The dual progressive leverage rate curve might make some spring rates seem stiff, we encourage you to try different rates that will allow you to sit deeper into the suspension travel and find that perfect set up.

FOX FLOAT DPX2:

Prior to performing shock adjustments, determine riding weight ( fully geared up ). Push the shock O-ring against the wiper seal and push the sag adjuster on the non drive side of the Delta Link forward. Lean up against a sturdy wall, friend, or telephone pole and sit on the bike. Being careful not to tip over, dismount the bike and check the SAG indicator. The SAG indicator should barely cover the 30% mark and the O-ring should measure between 15-17mm from the shock body for ideal setup. The Insurgent uses a high volume air canister which compliments the progressive spring curve of the Delta System Suspension, if a less progressive feel is desired then experiment with different air volume spacers.

NOTE: These are just guidelines to start you on your suspension tuning journey. Its very important to tune your front and rear suspension together to get the best set up possible. Play around and find that special tune, then write it down so you don’t forget!

NOTE: The dual progressive leverage rate curve might make some spring rates seem stiff, we encourage you to try different rates that will allow you to sit deeper into the suspension travel and find that perfect set up.

HOW DO I ADJUST MY FLIP CHIPS?

Remove upper and lower linkage bolts then remove 3 flip chip bolts. Lightly wiggle flip chips free and flip 180 degrees with desired position facing up. The flip chip position will be visible when sitting on the bike and should read Low/XLow depending on model.

WHAT SIZE IS THE SEAT POST?

The Insurgent LB uses a 30.9 Stealth seat post and a 34.9 seat clamp.

WHAT IS THE WARRANTY ON THE INSURGENT LB?

3 Year limited warranty

WHAT TYPE HEADSET DOES THE INSURGENT LB USE?

The Insurgent LB uses an FSA Integrated Tapered No.57/68 headset, alternatively bearings from other suppliers can be used. Upper Bearing 30.2x41x6.5 36˚/45˚ Lower Bearing 40×51.8×8 36˚/45˚

WHAT IS THE SUGGESTED FORK LENGTH FOR THE INSURGENT LB?

The Insurgent LB was designed around 150mm and 160mm forks.

WHAT SHOCKS CAN THE INSURGENT LB ACCEPT?

The Insurgent LB works with the Rockshox Monarch Plus, 200×57 with custom Evil tune, but will also fit most 200×57 inline and external reservoir shocks with custom Evil tune. Contact us at info@evil-bikes.com for proper tune and fit information.

Podívejte se na další kola v nabídce

CHAMOIS HAGAR

700 X 50C
GRAVEL (ŠTĚRK)

EVIL FOLLOWING

FOLLOWING

29″ KOLA
120 MM ZADNÍ ZDVIH

EVIL OFFERING

OFFERING

29″ KOLA
140 MM ZADNÍ ZDVIH

EVIL WRECKONING

WRECKONING

29″ KOLA
166 MM ZADNÍ ZDVIH

EVIL CALLING

CALLING

27.5″ KOLA
131 MM ZADNÍ ZDVIH

EVIL FACTION

FACTION 2

26″
DIRT JUMP

Máte nějaké otázky nebo potřebujete poradit?

Neváhejte a kontaktujte nás telefonem, e-mailem nebo přes sociální sítě.

Share This
